product features:

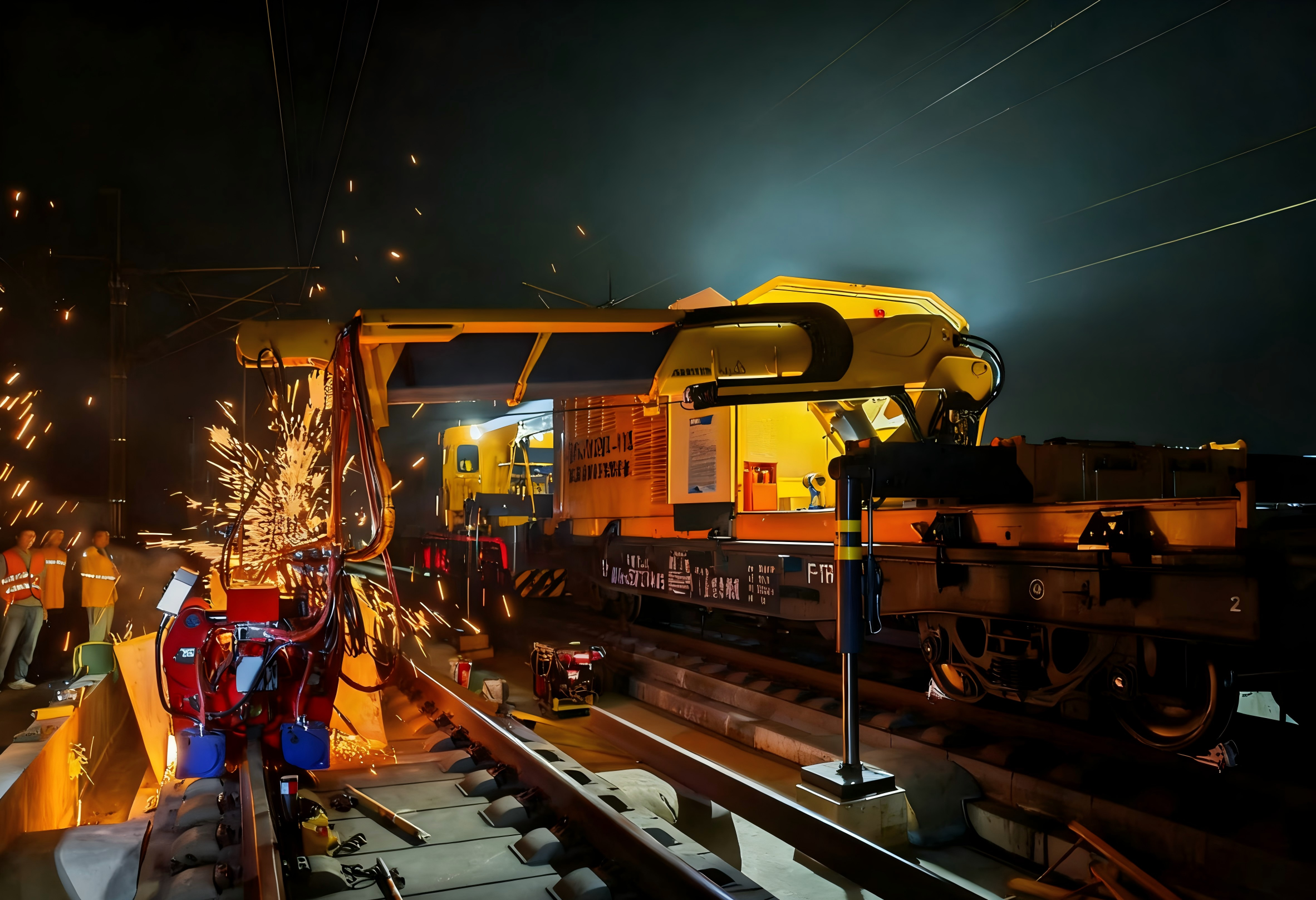

1.realizes the core function of "parking on the current line and operating on the current and adjacent lines". it can complete the rail welding operations on the current line and the adjacent lines within a radius of 7m centered on the current line without the need for equipment and vehicle line transfer.

2.integrates the welding and normalizing function in one to achieve continuous and efficient processing of welded joint quality.

3.capable of performing rail welding operations without power failure of the catenary.

4.adapts to the operating environment of straight and curved sections (including sections with a maximum super-elevation of 175mm).

5.can realize flash welding and normalizing operations of switches by switching the special switch welding head.

main technical parameters：

maximum welding stroke(mm): 120

rated pressure of hydraulic system(mpa): 25

maximum weldable rail cross-sectional area(mm²): 10000

maximum upsetting force(kn): 1200/1000(switch welding head)

maximum clamping force(kn): 3000

maximum air injection pressure(mpa): 0.6

air injection cooling time: ≥300s

normalizing heating time: ≤240s

medium-frequency normalizing frequency（khz）: 1.0～2.5generator power(kw): 400

flatness accuracy of welded joints (mm/1m):

rail top surface: 0～＋0.2

rail bottom surface: 0～＋0.5

inner working surface of rail head: 0～＋0.2

performance of welding machine hoisting device:

slewing radius（m）: 7

rotation angle: 180 degrees (±90°)

luffing angle: -7°～0°

leveling angle range: ±4°

stroke of leveling cylinder(mm): 120

maximum operating curve superelevation(mm): 175

rated hoisting weight at a slewing radius of 7m(t): 10

overall dimension(l×w×h):12880×2780×2656mm

total weight:38t

welding method: continuous flash welding, pulsating flash welding

centering method: rail web and rail top centering

shearing method: shearing by pressure

applicable rail types:

50kg/m, 60kg/m, 75kg/m, etc.
